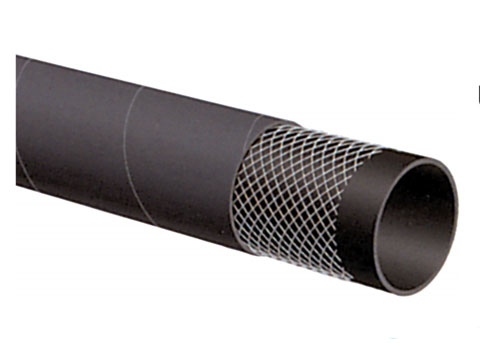

Rubber Air Hose
The rubber air hose is a flexible tube used to move and dispense liquids or gases. Rubber hoses come in various sizes and material makeups. For airlines, water transfer, light chemical, light vacuum, and general industrial applications.
Alias: Rubber Air hoses, Flexible Reinforced Air Hoses, reinforced air tubing.rubber air pipeline.Low-pressure application for compression and delivery. This hose is suitable for the delivery of compressed air and water.
- Tube: NR & SBR synthetic rubber.
- Reinforcement: High tensile synthetic yarn braided or spiraled.
- Cover: NR & SBR synthetic rubber.
- Application: For conveying air, inert gas, mineral water, liquids, etc. Buildings, agriculture and Industries.
- Temp. Range. : – 30 ̊C to +80 ̊C (22°F to 176°F)
Specification of Rubber Multipurpose 20 Bar Compressed Air Hose
This kind of economic general purpose rubber air hose for air and water for various industrial, construction and agricultural applications where oil is not considered a significant factor. Good abrasion and ozone resistance and can resist sun-checking and aging. Very flexible and kink resistant.
| Part No. | Size | I.D. | Thickness | Length | W.P. | B.P. | Weight |
| # | Inch | mm | mm | m/coil | Bar | Bar | kg/m |
| SHRA0512 | 3/16″ | 5 | 3.5 | 100 | 20 | 60 | 0.13 |
| SHRA0613 | 1/4″ | 6 | 3.5 | 100 | 20 | 60 | 0.17 |
| SHRA0815 | 5/16″ | 8 | 3.5 | 100 | 20 | 60 | 0.23 |
| SHRA1017 | 3/8″ | 10 | 3.5 | 100 | 20 | 60 | 0.26 |
| SHRA1322 | 1/2″ | 13 | 4.5 | 100 | 20 | 60 | 0.36 |
| SHRA1625 | 5/8″ | 16 | 4.5 | 50 | 20 | 60 | 0.53 |
| SHRA1929 | 3/4″ | 19 | 5 | 50 | 20 | 60 | 0.64 |
| SHRA2536 | 1″ | 25 | 5.5 | 50 | 20 | 60 | 0.85 |
| SHRA3243 | 1-1/4″ | 32 | 5.5 | 50 | 15 | 45 | 1.26 |
| SHRA3850 | 1-1/2″ | 38 | 6 | 50 | 15 | 45 | 1.42 |
| SHRA5165 | 2″ | 51 | 7 | 50 | 15 | 45 | 1.80 |
Material and Production of Rubber Multipurpose 20 Bar Air Hose
Package Style of Rubber Air Hose
